固態電池前段設備:從混料到纖維化到干法成膜及覆膜全線貫通。混料及纖維化為我司成熟產品;干法成膜設備有5輥,6輥及10輥,速度20m/min,寬度400mm,厚度50~230μm,精度+/-2μm。
精度適合的材料:正極三元,負極石墨。
研發方向:寬幅及高速成膜機,目前正在調試中。圖示為六輥成膜覆合一體機。
Front-end equipment for solid-state batteries realizes full-process coverage from material mixing, fiberization, dry film forming to film lamination.Material mixing and fiberization equipment are our mature products. Dry film forming machines are available in 5-roll, 6-roll and 10-roll models, with a running speed of 20m/min, maximum width of 400mm, and processing thickness ranging from 50 to 230μm, with a dimensional accuracy of ±2μm.
Applicable Materials: Ternary cathode materials and graphite anode materials.

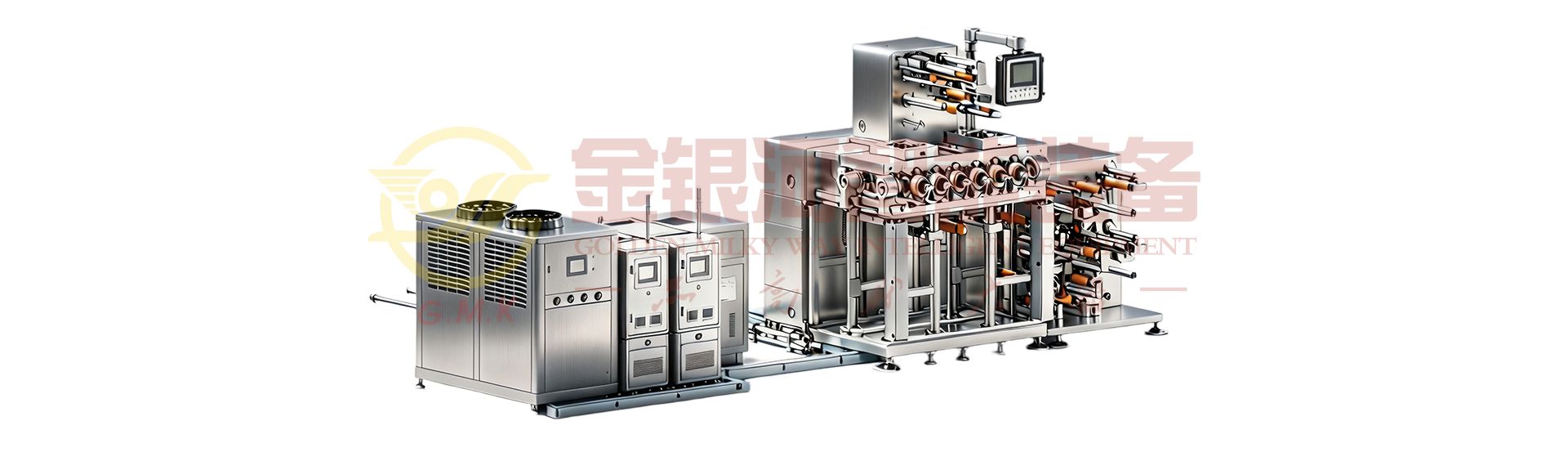

R&D Direction: Wide-width and high-speed film forming machines, currently under commissioning. The attached figure shows the 6-roll film forming & laminating AIO machine.
